Produtos de comércio exterior, sem suporte técnico na China, peça novamente se você souber como usá-lo, nenhuma devolução será aceita se não houver problemas com o produto!!!

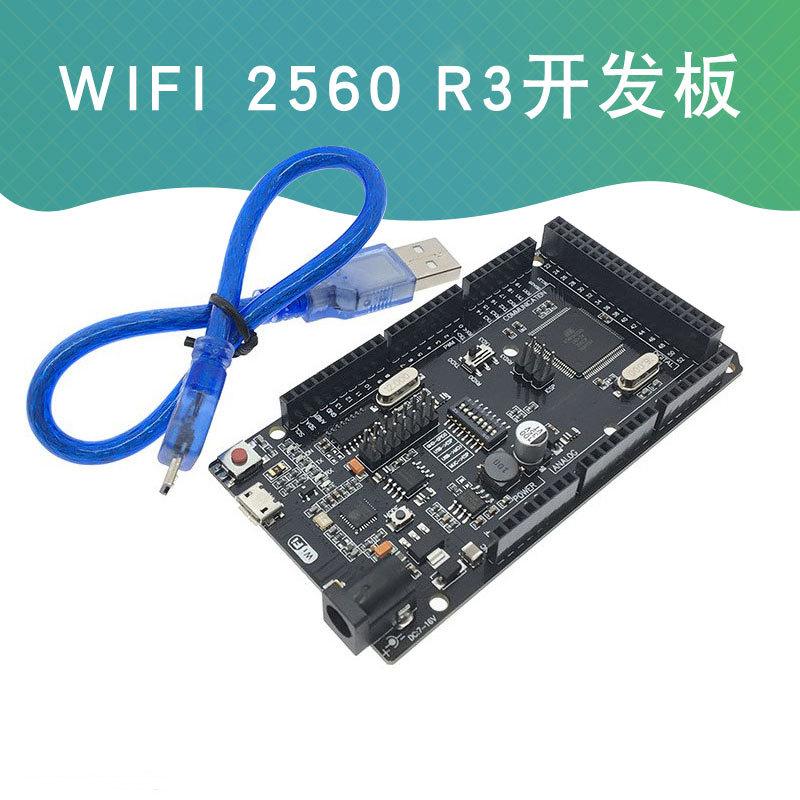

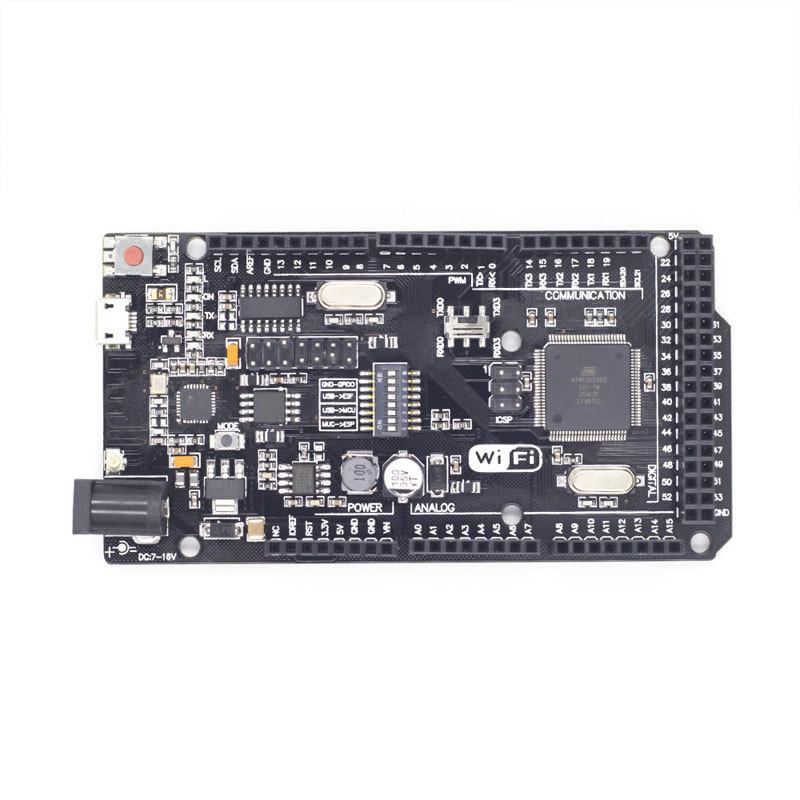

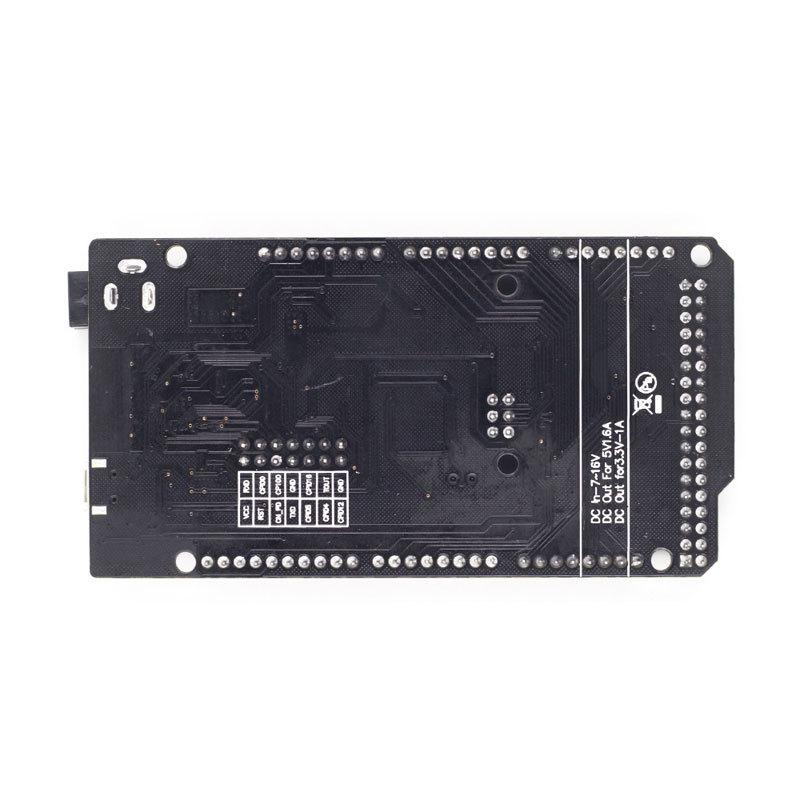

Para detalhes do produto, guias e instruções, software, visite a página oficial do produto.A placa All in one integra: mega r3 atmega2560 e wifi esp8266 com 32 MB de memória. Todos os módulos podem ser usados sozinhos ou juntos. E cada um tem seu próprio cabeçalho de pino. Solução conveniente para desenvolver novos projetos, un e wifi. Você pode atualizar e firmar esboços para atmega2560 e para esp8266 via USB. Esta placa tem um conversor USB-serial ch340g a bordo. Usar esta placa é muito simples. Placa de interruptor DIP da Ancelotti, conecte os módulos. Por exemplo, uma interface USB: USB e atmeg2560 e esp8266, atmega2560 e esp8266.
Tabela de interruptores DIP:
|
Conexão |
MERGULHAR |
||||||
|
|
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
ATmega2560ESP8266 |
SOBRE |
SOBRE |
DESLIGADO |
DESLIGADO |
DESLIGADO |
DESLIGADO |
DESLIGADO |
|
USB ATmega2560 |
DESLIGADO |
DESLIGADO |
SOBRE |
SOBRE |
DESLIGADO |
DESLIGADO |
DESLIGADO |
|
USBESP8266 (Atualizar firmware ou esboço) |
DESLIGADO |
DESLIGADO |
DESLIGADO |
DESLIGADO |
SOBRE |
SOBRE |
SOBRE |
|
USBESP8266 (comunicação) |
DESLIGADO |
DESLIGADO |
DESLIGADO |
DESLIGADO |
SOBRE |
SOBRE |
DESLIGADO |
|
Tudo independente |
DESLIGADO |
DESLIGADO |
DESLIGADO |
DESLIGADO |
DESLIGADO |
DESLIGADO |
DESLIGADO |
Solução especial:
USB ATmega328 ESP8266
|
|
MERGULHAR |
INTERRUPTOR 2 |
||||||
|
Conexão |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
|
|
USB ATmega2560 ESP8266 |
SOBRE |
SOBRE |
SOBRE |
SOBRE |
DESLIGADO |
DESLIGADO |
DESLIGADO |
Para RXD3/TXD3 |
· Conversor USB CH340G conectado a RX0/TX0 do ATmega2560
· ESP8266 conectar a RX3/TX3 do ATmega2560
